Changing RDWeb default Port on Windows Server 2019

Story:

When you install RDS on a server which already uses the port 443, you will get the following error when you try to access RDWeb main page.

Reason for this is the server you installed RDWeb on is most likely already using the port 443 or something else.

Error Message:

When trying to access RDWeb on the same server you’ll get the following error:

Service Unavailable

Http Error 503. The Service is unavailable

clip_image001

Troubleshooting

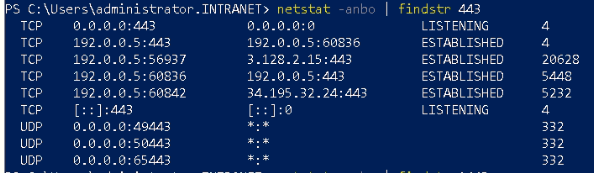

To Troubleshoot, Let’s see what is using the port 443.

Run CMD or PowerShell as an Administrator and type the following command

Netstat -anbo | findstr 443

clip_image002

Changing Port to 1443 or 8443

Let’s try changing the Port using the RD Gateway Manager

From the Gateway Manager click on the Properties on the right pane > Go to Transport Settings Tab and change the HTTPS port to 1443 or 8443

clip_image003

Changing Ports using Registry

Navigate to and make sure you first take a backup (Export the key)

[HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\TerminalServerGateway\Config\Core]

Change the following registry value

IsUdpEnabled REG_DWORD 0

clip_image004

Backup and change the following port value to the intended one

[HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\TerminalServerGateway\Config\Core]

HttpsPort REG_DWORD (8443)

Change the base to Decimal to type the write port number.

clip_image005

Restart Service

From PowerShell restart the service

net stop tsgateway
net start tsgateway

clip_image006

Let’s see the listening port 8443

From PowerShell type

Netstat -anbo | findstr 8443

Netstat -anbo | findstr 8443

clip_image007

Let’s go to the main page and see if it works..

Voila! Finally it worked

clip_image008

clip_image009
