Tag Archives: Office 365

Upgrading Exchange Online PowerShell to V2 Module

Managing Exchange Online

If you have Exchange Online and your users are MFA enabled then you most likely will be using Exchange Online’ s ECP (Exchange Control Panel or Admin Center) to connect to Exchange Online PowerShell through the Hybrid Windows since this is the only supported way with MFA.


Clicking on Configure would install the PowerShell Module of Exchange Online which looks like the below screenshot.


New PowerShell with MFA support

If you have launched Exchange Online PowerShell today then you most likely have noticed there’s a red line stating the possibility to try the new (Preview Version) of Exchange PowerShell V2 .

Microsoft has recently released a new version of Exchange Online PowerShell Module which supports MFA and can be run directly from your computer without the need to login to Exchange Online Admin Center and download any files from there.  Check details in this link

As stated in the article, the Module is just in preview so it has some known and maybe unknown bugs as well.

How to Install it?

The installation process is pretty straightforward, Launch Windows PowerShel as an Administrator (It’s required for the installation).

Run these 4 cmdlets

Set-ExecutionPolicy RemoteSigned

Install-Module PowershellGet –Force

Update-Module PowershellGet

Install-Module -Name ExchangeOnlineManagement


You might get a warning that the Module you’re about to install is from an Untrusted Repository, Accept it by typing Y and hit enter

Type the following cmdlet to ensure that Exchange Online Management module is installed

Import-Module ExchangeOnlineManagement; Get-Module ExchangeOnlineManagement


Connecting to Exchange Online

To connect to Exchange Online, Run the following cmdlet along with the new parameter –EnableErrorReporting which gives the ability to record all the cmdlets that you have run along with errors generated as well.

Connect-ExchangeOnline -EnableErrorReporting -LogDirectoryPath e:\ExchOnlineLogs.txt -LogLevel All



After connecting, I am going to try and run two commands the Old Cmdlets and New Cmdlet and see the difference between them:

  1. Get-CASMailbox -ResultSize 10
  2. Get-EXOCasMailbox -ResultSize 10


The new Cmdlet has much more details, although it says that it runs faster but it took few seconds more than the old one to run (Probably first time).


After you run those two Cmdlets, There will be two files generated in the log directory which we have pointed the parameter to save files to.

The CSV files have details about the two cmdlets and the HTTP Method they are utilizing in order to connect along the Request and response latency.


This new version seems to be extremely useful esp in environments where such deep details are needed for troubleshooting issues.

Stay tuned for more

Reference:

https://docs.microsoft.com/en-us/powershell/exchange/exchange-online/exchange-online-powershell-v2/exchange-online-powershell-v2?view=exchange-ps

Error After Migrating ADFS from 2012R2 to 2016

The Story:

You might have got a request to upgrade from ADFS 2012 R2 to Windows ADFS 2016.

This process can be complicated especially if you’ll have to migrate the Database as well and it would be more of an issue when the Database is WID (Windows Internal Database) since there’s no much documentation about troubleshooting issues involving WID on ADFS.

I have got a request from a client whom have done a migration with another consultant and obviously it was not done right.

Symptoms

On Windows 2016 ADFS when trying to update the ADFS SSL certificate I get the following error:

Set-AdfsSslCertificate -ThumbPrint A7etc : PS0159 : The Operation is not supported at the current Farm Behavior Level ‘1’. Raise the farm to at least version ‘2’ before retrying.

At line:1 char:1

clip_image001

Trying to update the database from 1 to 2,3 will also fail with the following error:

Invoke-AdfsFarmBehaviorLevelRaise


Error:

Database upgrade cannot be performed on AdfsServer.domain.com. Error: A database for the target behavior level already exists.

Troubleshooting:

If you’re installing ADFS on WID (Windows Internal Database) you should run the following to get the database name/Connect String

On ADFS Server

Open Windows PowerShell

  1. Enter the following:
    $adfs = gwmi -Namespace root/ADFS -Class SecurityTokenService

    and hit Enter

  2. Enter the following:
    $adfs.ConfigurationDatabaseConnectionString

    and hit enter.

  3. You should see the connect string information.


Go to Service Console and stop ADFS Service or from Powershell type Net stop adfssrv

Run SQL Server 2017 Database Engine Tuning Advisor as an administrator

clip_image001[4]

Use the Server name as this

\\.\pipe\MICROSOFT##WID\tsql\query

As for Authentication, Use the Windows Authentication with the user you’re logged into if you know that’s a privileged user and can authenticate, If not try with a user which you’ve done the upgrade of ADFS with.


After authenticating, You will be able to see AdfsConfiguration , AdfsConfigurationV3 and AdfsArtifactStore. What we need to see is that AdfsConfigurationV3 has data in it and is not totally empty.

clip_image001[6]

After checking and comparing the size between V1 and V3, It appeared that V3 database is empty. So what next?

Solution

Deleting the AdfsConfigurationV3 was the first thought that hit my mind however, before deleting anything I always take a snapshot of the VM since backing up the WID is more painful and takes more time than simply backing up the VM (Checkpoint, Snapshot).

So the steps to fix this issue is

  • Taking a VM Snapshot/Checkpoint/Backup.
  • Download Microsoft SQL Server Management Studio from this link https://go.microsoft.com/fwlink/?linkid=864329
  • Install Microsoft SQL Server Management Studio on ADFS Server
  • Run MS SQL Server Management Studio as Administrator
  • In the Server Name type :

\\.\pipe\MICROSOFT##WID\tsql\query

Leave the Authentication as it is and logon.


  • From the SQL Object Explorer right click and Delete the AdfsConfigurationV3 and leave AdfsConfiguration Database only.


  • After deleting the Database, Start ADFS Service to make sure that it can load the old database without an issue.
  • Then run the cmdlet Invoke-AdfsFarmBehaviorLevelRaise and Accept by typing Y and Enter.


This might take about 5 minutes to finish.


When this process is done, You should see the following message indicating the success of the Database Upgrade.


To double check, We will run the cmdlet Get-AdfsFarmInformation


Updating Certificate

After this success, I am going to run the cmdlet below to replace the current certificate with the new one

Set-AdfsSslCertificate -Thumbprint 9b19426e17180c0b9c5d4atye53dda3bce9dbff

And here we go. It works perfectly fine


References:

https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/troubleshooting/ad-fs-tshoot-sql

https://docs.microsoft.com/en-us/windows-server/identity/ad-fs/design/federation-server-farm-using-sql-server

Use Group Based Licensing to Active Office 365 Users

The Story

I got a request to place users into Security Groups for management purposes, The client have already users active but many of those users have left the work place and still have E3 or E1 Licenses which they should not have since this is pricey licenses and backing up users details is the easiest and most cost effective way of handling this.

So, To start (Prerequisites):

The Group based licensing management is a new feature, Was introduced in 2019 and not many people know that it is there however, This feature doesn’t come for free as you know (Since it’s Microsoft) and you must have a license for it or at least have users with E3 licensing model. So the requirements are:

  • – Azure AD Premium P1 or Higher
  • – Office 365 E3 or Higher.
  • – EMS or Higher.

How does it work?

In order for you to get this to work  you need to make sure you have planned from where you want to manage those groups and their licenses, Online? Or On-Premises?

IF Online

If you’re going to do this online, then you need to create a group for each Licensing Model which represents the intended License and its users e.g. Office365-E1 is going to be created as a security group and dedicated to E1 License users.

Office365-E3 will also be created the same way and users of License type E3 will be added to it.

If On-Premises

If you’re going to manage those groups on-premises, Then you must have ADConnect (Azure AD Sync) tool to sync those groups after creating them.

In my case I have created those groups in the following manner:


After creating those groups, You will need to sync them to Office 365 using ADConnect. To force this to sync immediately fire up Powershell on Azure Connect Server and type

Start-ADSyncSyncCycle -PolicyType delta



What If I have users already assigned with License?

If you have users already assigned licenses and want to manage them using Group Based licensing then you’re going to have to get a list of all your users with their Licenses information into a CSV file and Import those users to the groups you created base on the license they have.

I created a PowerShell that would match user’s names and based on the license mentioned in the CSV file would add them to the relevant group but first you need to export Users from Office 365.

Export Users and their license from Office 365

First of all we’ll connect to Office 365 MSOL Service using Online Powershell


Get-MsolUser -All |Where {$_.IsLicensed -eq $true } |Select DisplayName,UsageLocation,@{n=”Licenses Type”;e={$_.Licenses.AccountSKUid}},SignInName,UserPrincipalName,@{n=”ProxyAddresses”;e={$_.ProxyAddresses}}| Export-csv -Path C:ExportlicenseUsage.csv -notype


So this is how my CSV look right after I exported the users, We need to do some tuning on this CSV file to clean it and get it ready for our PowerShell.


There are total of 6 columns in this folder, If for whatever reason you wanted to use the ProxyAddress to distinguish users feel free to keep them in the script but in my case I didn’t need them so I deleted the entire column.

So I will keep the following (Remove Spacing between License Type)

  • DisplayName
  • UsageLocation
  • LicenseType
  • SignInName
  • UserPrincipalName

The Value of the License Type is usually formatted like this “TenantName: License” and in order to make this column useful I am going to remove the Tenant name from all the cells.

Find and Replace can easily remove and clean these values for you.


After cleaning the column, this is how it looks


This should be useful for us now along with the PowerShell to add the users to their relevant groups.

On Active Directory from an elevated PowerShell

Run PowerShell ISE  from a privileged account and copy + paste this script in ISE,

$ImportedUsers = Import-csv “C:\Users\AD\Desktop\ExportlicenseUsage.csv”

Foreach ($ImportedUser in $ImportedUsers){
$License = $ImportedUser.LicensesType
$E3 = “E3-Office365”
$E1 = “E1-Office365”
$EMS = “EMS-Office365”
$Sam = $ImportedUser.SamAccountName
$ImportedUPN = $ImportedUser.UserPrincipalName

$AllUsers = Get-ADUser -Filter * -Properties *
Foreach ($User in $AllUsers)
{
$UPN = $User.UserPrincipalName

if($user.UserPrincipalName -eq $ImportedUPN -and $License -match “EMS”)
{
Add-ADGroupMember -Identity $EMS -Members $Sam
Write-Host $($UPN) “User has EMS License and has been added to the Group EMS” -ForegroundColor DarkGreen -BackgroundColor White
}
ElseIf ($user.UserPrincipalName -eq $ImportedUPN -and $License -Contains “STANDARDPACK”)
{
Add-ADGroupMember -Identity $E1 -Members $Sam
Write-Host $($UPN) “User has E1 License and has been added to the Group E1” -ForegroundColor black -BackgroundColor green
}
ElseIf ($user.UserPrincipalName -eq $ImportedUPN -and $License -Contains “ENTERPRISEPACK”)
{
Add-ADGroupMember -Identity $E3 -Members $Sam
Write-Host $($UPN) “User has E3 License and has been added to the Group E3” -ForegroundColor Blue -BackgroundColor White
}
}
}


Enabling Group Based License from Azure Portal

After this script finishes, I can open Azure Portal

From Azure Active Directory > Licenses > All Products

image   image    image

I will choose the license which I want to assign to a group of which I have created on my on-premises AD


Click on the License (Office 365 E1)  and choose Assign from top menu


Make sure you select assignment options and customize the license according to the products you want your group members to use then click on Users and Groups and select the relevant Group which you’ve created (In my case it’s E1-Office365)


Here, The group has been assigned


Click assign and you should be done


We will do the same for E3 Users



NOTE

From now on, Removing any user from this group will revoke their license and any service connected to it, You must be very careful when removing users from this group.

Microsoft has done great job covering this thoroughly and in a great detail including Scripts to be able to do many things like grabbing users who have an inherited license from a group or manually assigned. I am writing down the references if you’re more curious into these.

References:

https://docs.microsoft.com/en-us/azure/active-directory/users-groups-roles/licensing-groups-assign

https://docs.microsoft.com/en-us/azure/active-directory/users-groups-roles/licensing-ps-examples

How to Sync Cloud User to On-premises AD ?

The Story:

I have got this client who constantly keeps on making the mistake of create user from Cloud and provision them with a license in an Exchange Hybrid environment.

Although this is not difficult to fix but it’s not the recommended approach when creating a new user especially in a Hybrid environment since Exchange on-premises won’t recognize this user and most likely will consider any incoming emails from it as spoof or spam.

How to Create a Cloud user from Exchange On-premises?

From Exchange on-premises ECP Admin panel you have the option to directly create user on-cloud which will also create a user object on on-premises AD.


Second option – Using Powershell

It’s not that much different than the Web UI option but it’s just for people who prefer using PowerShell than GUI

Enable-RemoteMailbox –Identity User –RemoteRoutingAddress user@yourTenant.mail.onmicrosoft.com

The reason to follow those two methods is due to the need of Exchange on-premises being aware of each of those users so mail flow between Exchange on-premises and Online would not get affected and route this users mail to the wrong place or flag it as spammed or spoof …etc.

The Real Question now is: How to Sync Cloud User to On-premises AD ?

If by mistake we created a user on Cloud (Office 365) and we forgot to create an AD User for this account, that user might already have started using his account on Office 365 (Sharepoint, Exchange, Teams) etc.

There also might be the intention of moving users from Cloud to On-premises Exchange in case the company wanted to decrease their spending on cloud users and in this case when Migrating a cloud user to on-premises you will get the following errors:


test3@domain.com

Status: Failed

test3@domain.com Skipped item details

User status

Data migrated:

Migration rate:

Last successful sync date:

Error: MigrationPermanentException: Cannot find a recipient that has mailbox GUID ‎’03c9764e-8b8e-4f33-94d1-ef098c4de656‎’. –> Cannot find a recipient that has mailbox GUID ‎’03c9764e-8b8e-4f33-94d1-ef098c4de656‎’.

So how do we overcome this situation since syncing a user might require you to delete the cloud user and recreate it on AD?

Solution:

To sync the user from the Cloud to on-premises you will need to follow these steps :

1- Create an on-premises Mailbox where the following attributes would be matching the cloud user

  • UserPrincipalname
  • ProxyAddresses
  • SamAccountName
  • Alias

2- The Location of the OU where the On-premises user is going to be created must be provisioned by ADConnect (Azure AD Connect)

You can look which of these OU are provisioned by Starting AD Connect Sync Manager


By verifying the user you created in the AD is in the right OU, You can now start AD Sync from PowerShell to speed up the process.


Below, You can see the user has been successfully synchronized to the cloud without any issue.


Now we’ll see it from the portal to confirm the user is synced with AD


Depending on the Source anchor being used in ADConnect there might be a GUID conflict or not, You will get an error similar to when trying to migrate the user in the beginning however you can solve this by replacing the cloud user’s GUID (ImmutableID) with the on-premises user which will force the user to merge with the On-prem user.

Let’s confirm in our case if the user on-cloud has a matching GUID with the one on-premises.

From CMD or Powershell you can use the following command to get the user’s ImmutableID (ObjectGUID) .

ldifde -f c:\Test.txt -d “cn=Test3,DC=Domain,DC=com”


Checking the notepad we just exported you can see the Immutable ID on AD for the User test3 is IkTni9mw7Ee4YefeGpz7IA==


To be able to see the user on Office 365, We need to logon to MSOL through Exchange Online powershell

Connect to Exchange Online’s powershell using your Online ECP.


Once you click on Configure this should download an executable file that will launch PowerShell Online which allows you to use the Modern Authentication (MFA) to use PowerShell safely.


Connect-Msoluser will connect you to Office 365 and you’ll be able to get the user’s properties and see if the Immutable ID is matching to the user’s GUID.

Once you’re connect you can use the following cmdlet to get the user’s properties.

Get-MsolUser -UserPrincipalName test3@domain.com |fl DisplayName,ImmutableID


You can see they are matching each other, In case there’s a conflict then you can simply set the online user’s Immutable ID to match the on-premises user’s ImmutableID.

Once done, Go and force ADConnect to sync the user and you’ll see if the problem has been resolved. The command for changing the Immutableid is as follows:

Set-MsolUser -UserPrincipleName test3@domain.com -ImmutableID IkTni9mw7Ee4YefeGpz7IA==

Ref:

https://support.microsoft.com/en-us/help/2956029/migrationpermanentexception-cannot-find-a-recipient-that-has-mailbox-g

https://docs.microsoft.com/en-us/exchange/hybrid-deployment/create-cloud-based-archive

Search and Delete certain Items/Folders from a Mailbox

The Story

During a project of Hybrid migration from Exchange on-premises to Exchange online, I was almost about to finalize the project by moving the last remaining users mailboxes however had an interesting issue to deal with where a user was failing with the following error:

The Error after migration:

Error: MigrationPermanentException: Mailbox dumpster size 50.87 GB (54,620,074,576 bytes) exceeds target quota 30 GB –> Mailbox dumpster size 50.87 GB exceeds target quota.


After some research it turned out that you can clean the dumpster using search-mailbox PowerShell cmdlet, Sync the user’s object with ADConnect and then continue the migration from the last failure.

To solve the issue, Go on your Exchange on-premises and launch Exchange Management shell

Solution applied:

First, Let’s see the user’s dumpster and recoverable items

Get-MailboxFolderStatistics -Identity “User” -FolderScope RecoverableItems | Format-Table Name,FolderPath,ItemsInFolder,FolderAndSubfolderSize


To Delete the dumpster only use this

Delete dumpster only

Search-mailbox -identity User -SearchDumpsterOnly –DeleteContent

To delete a certain email with certain subject in the dumpster use the following:

Get-mailbox “user”| search-mailbox –searchquery “Subject:’*'” –DeleteContent –SearchDumpsterOnly


The cmdlet will search and delete

clip_image001


Reference:

https://docs.microsoft.com/en-us/microsoft-365/compliance/search-for-and-delete-messagesadmin-help

Deleting Old Skype for Business or Lync server from ADSI

The story

I had a project few weeks ago where my client wanted to install Skype for Business 2019 but had installed Lync before and removed the server without doing proper decommissioning which kept dirty records in AD database and had to be removed manually in order to make a new clean installation of Skype for Business 2019

To do so:

There are two days of doing so, One is using ADSIEdit and ADUC to remove Computer Objects and Users related attributes and Security Groups.

I normally would prefer PowerShell but since we can demonstrate both ways for people who like to work with GUI

Starting with GUI

Removing Legacy Lync server from the AD Schema

Prerequisites

  1. Using a domain or enterprise admin
  2. Access to the ADSIEdit.

Goal of removing Legacy Lync server from your AD environment.

  1. Preparing AD schema and domain for a new deployment after you improperly deleted Lync Servers without uninstalling them.
  2. Cleaning Users’ Lync related attributes for the new deployment.

clip_image001

clip_image002

Step#1: Remove permissions

This step removes the original Lync permissions from the active director.

  1. Open Active Directory Users and Computers
  2. Right click on your top level domain being cleaned and select Properties
  3. From the Properties windows, select the Security tab.
  4. Remove all security users titled RTC*
    These are usually
    – RTCUniversalServerReadOnlyGroup
    – RTCUniversalUserReadOnlyGroup
    – RTCUniversalUniversalServices
    – RTCUniversalUserAdmins

From <http://blog.armgasys.com/?p=320>

clip_image003

clip_image004

  1. Repeat the same steps for each of the following AD Folders and

    OUs
    NOTE: Not all RTC permissions will exist in each AD Folder or OU, but these three OUs do:
    – Domain Controllers
    – System
    – Users

Domain Controllers

clip_image005

Systems

clip_image006

Users

clip_image007

Step#3: Additional AD cleanup

  1. Open Active Directory Users and Computers
  2. Drill down as follows
    [Your Domain] \ Program Data \ Distributed \ KeyMan
  3. Delete LyncCertificates
    NOTE: This may not exist in all scenarios.
  4. Drill down as follows
    [Your Domain] Users
  5. Delete all RTC* and CS* users created by Lync
    I.E. CSAdministrator, CSHelpDesk, RTCComponentUniversalServices, Etc.


Deleting users from the User OU

clip_image001[6]

Deleting CS Users

clip_image002[4]

Step#4: Cleanup existing users

This steps resets Lync attributes for any domain users and contacts.


The Second way: Using PowerShell

get-aduser -filter {msRTCSIP-PrimaryUserAddress -like “*”}|set-aduser -clear msRTCSIP-PrimaryUserAddress,msRTCSIP-PrimaryHomeServer,msRTCSIP-UserEnabled,msRTCSIP-OptionFlags,msRTCSIP-UserPolicies, msRTCSIP-DeploymentLocator, msRTCSIP-FederationEnabled, msRTCSIP-InternetAccessEnabled

Result:

Users attribute are clean and AD has nothing left over of Previous installation of Lync or Skype for Business .

clip_image001[8]

In Exchange MRSPROXY.SVC FAILED BECAUSE NO SERVICE WAS LISTENING ON THE SPECIFIED ENDPOINT.

Symptoms

In Exchange MRSPROXY.SVC FAILED BECAUSE NO SERVICE WAS LISTENING ON THE SPECIFIED ENDPOINT. THE REMOTE SERVER RETURNED AN ERROR: (404) NOT FOUND

Exchange 2010 / 2013

You get an error when you’re trying to setup Hybrid configuration between your Exchange On-premises or Online.

After I had one issue like this I did some research and used Fiddler / Wireshark to check for traffic I noticed that the traffic on the server is not encrypted and testing the Migration Server Availability was reporting that the MRS service was not listening on the supposed port which is 443.

CAUSE


This problem may occur if the ExchangeGUID property of the Exchange Online MailUser object does not match the ExchangeGUID property of the on-premises mailbox. To successfully move a mailbox, the value of the ExchangeGUID property in the Exchange Online mailbox and in the associated on-premises remote mailbox must match.


In this case the solution was pretty easy, but still you’ll have to make a hard choice of choosing to place Exchange behind a load balancing with SSL Offloading on or not.

In my case I had to turn off the SSL Offloading on the Load balancer and that alone was enough to get this working.

Resolution:

Make sure that SSL Offloading is disabled on OWA/OA and Load balancer if there’s one.

Other resolutions:

https://support.microsoft.com/en-us/kb/3065754

Slow Migration – Office 365

The story:

In office 365 when you’re working on Exchange 2010,2013, 2016 or 2019 in a hybrid environment things might look easy but in a big enterprises where Internet security is something being taken into account very seriously. It might cause many issues that you don’t expect at all.

One of my clients whom I was doing Exchange Migration for had an issue with the Migration. The error was as follows:

Error occurs after Office 365 Exchange online connects to Exchange on-premises 2010 mailbox server

Error in Office 365

         : 20.

                                           27.04.2016 08:03:17 [DB3PR05MB0778] Transient error DataExportTransientExcep

                                           tion has occurred. The system will retry (2/1280).

                                           27.04.2016 08:04:53 [DB3PR05MB0778] The Microsoft Exchange Mailbox Replicati

                                           on service ‘DB3PR05MB0778.eurprd05.prod.outlook.com’ (15.1.466.25 caps:03FFF

                                           F) is examining the request.

                                           27.04.2016 08:04:55 [DB3PR05MB0778] Connected to target mailbox ‘lcwonline.o

                                           nmicrosoft.com\ec96e315-1059-4710-b358-1c4b42f3edeb (Primary)’, database ‘EU

                                           RPR05DG049-db131′, Mailbox server ‘DB3PR05MB0778.eurprd05.prod.outlook.com’

                                           Version 15.1 (Build 466.0).RequestExpiryTimestamp                   : 03.04.2116 07:42:38

ObjectState                              : New

Troubleshooting:

To troubleshoot issues, You need to put so many things into account! The architecture of the infrastructure of where you are doing the project is very important and the need of knowing how things are working matters.

Things that could always come in mind and handy are what you will need to start your troubleshooting:

– Bandwidth Limitations or Performance:

https://technet.microsoft.com/en-us/library/dn592150(v=exchg.150).aspx

https://technet.microsoft.com/en-us/library/jj200581(v=exchg.150).aspx

– Exchange Configuration (MRS)

To troubleshoot the MRs, You need to know what kind of error you’re getting and to see this you can use the following powershell after you connect to Office 365 powershell.

Get-MoveRequest {email} | Get-MoveRequestStatistics -Diagnostic -IncludeReport | Export-Clixml c:\logfile.xml

The resultant report will reveal the error and shows you where is the exact culprit.

– Disk Latency
– Firewall Configuration (IPS/IDS)

From Exchange 2016 to 2019 or 2013 to 2016 The transient error might be related to MRSProxy or at least this is the case with me 90% of the time. To resolve this issue you will need to change the MRSProxy values on the target server and depending on the error might also be the Source server too.

SOLUTION:

===========

1. Some instability was detected in communications as well as saturation by the size of the link.
2. The procedure to increase the timeout for the service through the file MRSProxy

File: MsExchangeMailboxReplication.exe.config

Object / line: DataImportTimeout.

New Value: 00:10:00

clip_image001[4]

New Configuration

clip_image001[6]

2- SKYPE FOR BUSINESS EDGE SERVER DEPLOYMENT AND HYBRID INTEGRATION WITH SKYPE FOR BUSINESS ONLINE

Skype for Business Edge server deployment and Hybrid integration with Skype for Business Online

In the last Skype for Business post I have upgraded my Lync 2013 to Skype for Business (Click here to go to that post). in this article I am going to install Edge server for Skype for Business to the same Lync Environment where I have done the Upgrade to Skype for Business.

Configuring Edge Server

Setup NETBIOS

In order to configure Skype 4 Business Edge, we’ll have to change the Netbios to give it the name of our Domain but we won’t join it to the domain.

clip_image001[8]

clip_image002[8]

Setup NICs

Edge Server must have 2 NICs, one Local NIC will point out to the Front end server but must not have Default gateway so traffic can only flow through the DMZ out to the internet and back in. but still it must be able to ping to the FE from Edge and vice versa.

The DMZ network could have a single DMZ address (Public Address to be pointing to) or three DMZ addresses for public IP addresses with standard https ports.

clip_image003[8]

clip_image004[8]

Configure Hostnames

Edit the Edge server’s host file to include Lync FE and DC’s IP addresses and Hostname


Install Prerequisites

  • Microsoft .Net Framework 3.5
clip_image001[10]

Now I will go back to Skype for Business FE server, I’ll launch the topology builder and add new Edge server

I will add the first Edge pool which contains of a single Edge server

clip_image002[10]

Next, you will have to choose if you want to enable federation with partners or other service providers …e.g. (Google)

clip_image003[10]

I am intending to use a single Public IP address with a different ports (nonstandard) since this is a lab. For production use it’s recommended to have 3 public IP addresses, One is for Access Edge, AV and WebConf services.

clip_image004[10]

Next I will choose the last option which says that the Edge pool is translated by NAT. I will configure my firewall to NAT ports to the Edge’s DMZ IP addresses from the Public so I am choosing this option.

clip_image005[8]

clip_image006[8]

This is the FQDN’s the default configuration .. It’ll only use a single FQDN for all services if you’re going to use a single public IP address with a different ports.

IMPORTANT NOTE

When you use a single IP address with a different ports, the Access Edge port will normally change to 5061 (Not 443 like in the _sip._tls.domain.com) SRV record which will cause failure if you forgot to change this port to match the one in your Topology’s Access Edge settings.

Next I’ll have to enter my Edge server’s Local IP address.

clip_image007[8]

Next I will be asked to enter the DMZ’s IP address which the wizard calls (Private External IP address)

clip_image001[12]

Here I am going to place the NAT IP address which is my Public IP address.

clip_image002[12]

Next I’ll have to choose which Lync FE pool will be used as the next hop to the Edge pool. In this case I’ll be choosing my main pool since the second is only for resilience purpose.

clip_image003[12]

Then I’ll associate the mediation pool for Edge server for external media traffic. I can assign both in this case.

clip_image004[12]

Now I’ll click on Finish and right click on the Site name’s properties to enable the SIP federation and XMPP federation then Publish the topology.

clip_image005[10]

clip_image006[10]

clip_image007[10]

clip_image008[10]

Now I will setup Azure Active Directory Sync on my DC server in order to sync the required users for the test purpose.

My domain is adeo.local so I want to change the UPN for users to match the synced domain. (Adeo-office365.ga) and moh10ly.com

clip_image009[8]

Installing Azure Active Directory Sync

Now I will install the prerequisites which consist of the following

clip_image010[8]

Net framework 4.5.2 is required for AADS but it’s already installed on my server

clip_image011[8]

Next I will install Microsoft Online Service Sign in assistant

clip_image012[8]

Next I will install Azure AD Module

clip_image001[14]

Finally Azure AD Sync

clip_image002[14]

Before moving forward, I’ll have to go to the Office 365 portal and activate DirSync

clip_image003[14]

Then use a global admin credentials from O365.

clip_image004[14]

Adding the forest using an enterprise admin user account

clip_image005[12]

clip_image006[12]

Due to the fact that my domain adeo-office365.ga’s public dns host doesn’t have SRV configuration because it’s hosted by the famous free domain service (Freenom) so I’ll have to add my original domain moh10ly.com as Lync (S4B) requires SRV records to point to the on-premises lync.

clip_image007[12]

clip_image008[12]

clip_image001[16]

clip_image002[16]

clip_image003[16]

I will only sync one OU, so I will untick the Sync now box and click on Finish

clip_image004[16]

I will go to the following path

“C:\Program Files\Microsoft Azure AD Sync\UIShell” and create a shortcut for the GUI application of AADS on the desktop

“C:\Program Files\Microsoft Azure AD Sync\UIShell\miisclient.exe”

clip_image005[14]

To get this GUI app to work, you will have to sign out of your account and sign back in as your username will be added to the local administrators and have the authority to open it

Log off, log back in

clip_image006[14]

Next I will go to the connectors tab and double click on the ADDS connector (Adeo.local)

clip_image007[14]

I will go to the Configure Directory Partitions and under Credentials I’ll choose “Alternate credentials for this directory partition” then enter my on-premises AD Enterprise admin credentials

clip_image008[14]

I’ll click on Containers

clip_image001[18]

I’ll untick the DC=Adeo,Dc=Local box and only choose Dirsync OU then click OK and apply

clip_image002[18]

Before I start syncing my AD , I will go to Skype for Business Server and add my domain moh10ly.com as a SIP domain

clip_image003[18]

Next I am going to change the FQDN of the SIP access edge for public domain to moh10ly.com and the default port for the Access Edge to 443 and publish the topology

clip_image004[18]

clip_image005[16]

I needed to finally check if all my FE servers are replicating. So then I can move to Edge server to install Lync components

clip_image006[16]

On the Edge server, I’ll use ISO for Skype 4 business to install the setup

clip_image007[16]

clip_image008[16]

First thing I’ll install the local Configuration Store

I’ll click on Run and then I’ll be asked to import the configuration file which I’ll must export from Lync FE (Skype 4 b FE) server

clip_image009[10]

In this case, I’ll go to Lync FE and open Lync Management shell and enter the following Cmdlet

Export-CsConfiguration -FileName c:\top.zip

clip_image010[10]

This cmdlet will export a file to the root C drive . I’ll copy this file to the edge server.

clip_image011[10]

I’ll click next to continue, this should start installing the local store

clip_image012[10]

clip_image013[8]

clip_image014[8]

Next I’ll request a certificate for Internal NIC For edge server

clip_image015[8]

clip_image016[8]

clip_image017[8]

Configure Certificate

I’ll take the CSR (Certificate sign request) code and get a certificate from my local CA

clip_image018[8]

I’ll open MMC and add Certificates console and import the PKCS certificate

clip_image001[20]

clip_image002[20]

After importing the certificate I’ll assign it to the internal NIC by clicking on Assign to the Edge Internal

clip_image003[20]

clip_image004[20]

clip_image005[18]

clip_image006[18]

Once we assign the certfiicate to the internal edge. The replication service for Edge and FE will start working

clip_image007[18]

Now I’ll import my Public Certificate to Edge Server’s DMZ NIC

I already imported my public certificate, now I’ll go to the S4B wizard and assign it there

clip_image008[18]

clip_image009[12]

Unlike IN lync 2013 when you Click on Start service in the Wizard all services start on their own but on Skype for business you ‘ll have to start the services manually by yourself.

clip_image010[12]

So Instead I used the service console to start the services.

Now I’ll go back to the FE And enable remote connectivity to Skype for Business from outside and make sure that replication works fine by checking the Topology or from cmdlet

clip_image011[12]

clip_image012[12]


After the replication is finished, I was able to login remotely with my Skype for Business on-premises accounts.

Setting up Hybrid integration with Skype online for Business (O365)

https://technet.microsoft.com/en-us/library/jj205126.aspx

https://technet.microsoft.com/en-us/library/jj204669.aspx

In order to allow Hybrid environment to function properly, we’ll have to federate our Skype for Business on-premises’s Edge server as Microsoft says below

Federation allows users in your on-premises deployment to communicate with Office 365 users in your organization. To configure federation, run the following cmdlets in the Skype for Business Server Management Shell:

From <https://technet.microsoft.com/en-us/library/jj205126.aspx>

On the front end server, we’ll run the following CMDlet

Set-CSAccessEdgeConfiguration -AllowOutsideUsers 1 -AllowFederatedUsers 1 -UseDnsSrvRouting -EnablePartnerDiscovery $true

clip_image014[10]

Next cmdlet will create a new public federated provider for skype for business online.. However it already exists by default as in the below snapshot but just to avoid any issues I will delete the default provider from control panel and recreate it again.

clip_image015[10]

I’ll delete the hosted provider “Skype for Business Online”

clip_image016[10]

I’ll try the cmdlet again after deleting the provider ..

New-CSHostingProvider -Identity SkypeforBusinessOnline -ProxyFqdn “sipfed.online.lync.com” -Enabled $true -EnabledSharedAddressSpace $true -HostsOCSUsers $true -VerificationLevel UseSourceVerification -IsLocal $false -AutodiscoverUrl https://webdir.online.lync.com/Autodiscover/AutodiscoverService.svc/root

clip_image017[10]

Since it worked already, I will go back to the control panel and make sure it is enabled

clip_image018[10]

Next is : Configure your Skype for Business Online tenant for a shared SIP address space

Note:

To configure a shared SIP address space, establish a remote PowerShell session with Skype for Business Online, and then run the following cmdlet:

We’ll have to download skype for business online powershell

https://onedrive.live.com/redir?resid=82488EABA4ACDB15!38849&authkey=!AKW6Ln4Rkn6QuUI&ithint=file%2cexe

After launching the PowerShell module as an administrator I’ll run the following cmdlet

Import-Module SkypeOnlineConnector

clip_image019[8]

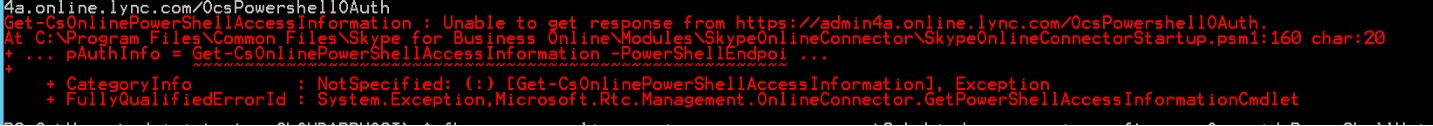

Now I’ll connect to my Office 365 tenant

clip_image020[8]

$cred = Get-Credential

$CSSession = New-CsOnlineSession -Credential $cred

Import-PSSession $CSSession -AllowClobber

clip_image021[8]

Now I’ll configure the shared sip address

Set-CsTenantFederationConfiguration -SharedSipAddressSpace $true

From <https://technet.microsoft.com/en-us/library/jj205126.aspx>

clip_image001[22]

To double check my configuration I will see if the SharedSipAddresSpace is enabled or not

Get-CsTenantFederationConfiguration

clip_image002[22]

To double check that the hybrid configuration is setup properly we can use the Skype for business on-premises Hybrid UI wizard from the Home Menu under “Connection to Skype for Business Online”

clip_image003[22]

Using the Skype for Business 2015 User interface to setup Hybrid configuration:

After you sign in it does automatically logs you in and configure the three following options

  1. Federation for the Edge server
  2. Federation with Office 365.
  3. Shared SIP address space.
clip_image004[22]

clip_image005[20]

Now I will configure my DNS Settings as recommended by Microsoft for the Hybrid Integration scenario

DNS Settings

When creating DNS SRV records for hybrid deployments, the records, _sipfederationtls._tcp.<domain> and _sip._tls.<domain>, should point to the on-premises Access Proxy.

From <https://technet.microsoft.com/en-us/library/jj205403.aspx>

  1. Update some DNS records to direct all SIP traffic to Skype for Business on-premises:
  • The lyncdiscover.contoso.com A record to point to the FQDN of the on-premises reverse proxy server.
  • Update the _sip._tls.contoso.com SRV record to resolve to the public IP or VIP address of the Access Edge service of Skype for Business on-premises.
  • Update the _sipfederationtls._tcp.contoso.com SRV record to resolve to the public IP or VIP address of the Access Edge service of Skype for Business on-premises.
  • If your organization uses split DNS (sometimes called “split-brain DNS”), make sure that users resolving names through the internal DNS zone are directed to the Front End Pool.

From <https://support.office.com/en-us/article/Configure-Skype-for-Business-Server-2015-Hybrid-b06ee805-4349-4519-82fb-b06ed57c0bd0>

According to Microsoft’s configuration of the Public DNS, you will have to configure only the SRV records to point to your edge server however, running a simple wireshark on your Skype for business client machine you can notice the following:

clip_image006[20]

Microsoft Lync / Skype client first requires the Lyncdiscover / Lyncdiscoverinternal record in order to see where the user is located… then gets redirected to webdir.online.lync.com which is the Cname value to the Lyncdiscover Cname in the public DNS and tries to login the user through Login.microsoftonline.com then finds no user there and logs in using the SRV eventually in the end as in the below snapshot which I’ve used Wireshark for to monitor the DNS traffic that the Lync Client requests upon login request.

clip_image007[20]

NOTE:

What have me confused here is that Microsoft says only SRV records must be pointing to your On-premises Lync/Skype for Business Edge server.. So you must enter something else other than SIP.domain.com (Which in normal cases might be the common name of your Edge certificate) for the value of the SRV Record since the SIP.domain.com and Lyncdiscover.domain.com must be pointing to Office 365.

I tried using the Public IP address of my Edge server just to check if my on-premises user will connect without any issue however I did have an issue with the Certificate saying “There was a problem verifying the certificate from the server”.

clip_image008[20]

Error:

Luckily the Public certificate that I had on my edge server had multiple SANs (Subject Alternative Names) and one of them was WAC.moh10ly.com which I was intending to use for the WAC Server (Office Web Apps Server) and then I created an A record on my public DNS WAC.moh10ly.com that points to my Edge server’s Public IP address…. although the Wac.moh10ly.com is not a common name but it worked and I was able to federate with Office 365 users and was able to move users from on-premises to office 365 and back to on-premises as demonstrated later in the article.

“When creating DNS SRV records for hybrid deployments, the records, _sipfederationtls._tcp.<domain> and _sip._tls.<domain>, should point to the on-premises Access Proxy.”

From <https://support.office.com/en-us/article/Configure-Skype-for-Business-Server-2015-Hybrid-b06ee805-4349-4519-82fb-b06ed57c0bd0>

clip_image009[14]

Now I have changed all the SRV records to direct to the new A record

clip_image010[14]

And finally deleted the A sip record and created a new CNAME record that points to sipdir.online.lync.com

clip_image011[14]

clip_image012[14]

I have already a user synced from my local AD to the cloud (office 365) that’s not enabled for Skype for business on-premises .. Once this user is synced and have been assigned a license it should be directly enabled for Skype for Business Online and I should be able to sign in to it without any issue.

Note:

In order for both users (homed online and On-premises) to see eachother’s presence the synced user must be enabled on the On-premises Server before moved to the cloud or else the presence and M will fail.

Time to test, I was able to sign in to the Online homed user (admin) and now I’ll be adding the on-premises homed user to the list to check the presence, IM ..etc

clip_image001[24]

Here I added the user admin to my other account Mohammed.hamada and vice versa.

clip_image002[24]

The Presence appears to be working fine for user homed on-premises as it shows when I changed it to “busy, be right back..etc” on the cloud user’s Client however the Office 365 homed user’s presence takes time to change on the on-premises user’s list and the IM doesn’t seem to work properly as messages sometimes doesn’t go through and fail.

Sending a message from the on-premises User (Mohammed Hamada) to (ADMIN)

clip_image003[24]

Now sending an IM from Admin to Mohammed Hamada

clip_image004[24]

To make sure that the issue is not within my on-premises server, I will use a different Skype for Business online account and see if IM work both ways.

This is my other user.. The presence information seems to work properly and now I’ll test the IM

clip_image005[22]

IM between my On-premises and another user on another Office 365 tenant seems to be working fine back and forth as in the below snapshots so the issue might be related to Office 365 tenant which I am using for this test (could be related to trial version)

I am going to open a case with MS and see why this issue happens since my on-premises work fine with other tenants.

clip_image006[22]

clip_image007[22]

Now It’s time to move users from and to cloud and on-premises to check how easy, flexible or hard this process is.

I currently have 2 users, one on cloud and one synced and homed online (Office 365)

clip_image008[22]

In order to move users, you can go to Users tab after the hybrid config is finished and find the user you want to move then click on Actions and chose to move the users to the Skype for Business Online as in the below snapshot

Note:

Before you move the user to Office 365, you must assign license to the user or else the move will fail.

clip_image009[16]

clip_image010[16]

clip_image011[16]

clip_image012[16]

clip_image013[12]

You can move the user back from Office 365 to your on-premises Skype for Business server with the same process exactly except that you’ll have to choose which pool you need to move the user to.

Checking where the user is hosted from Skype for business Management shell

The Hosting Provider will show you where the user is working from now.

clip_image014[12]

clip_image015[12]

clip_image016[12]

Hope this has been helpful

References:

https://technet.microsoft.com/en-us/library/jj204967.aspx

https://technet.microsoft.com/en-us/library/jj205403.aspx

https://technet.microsoft.com/en-us/library/jj205126.aspx

https://technet.microsoft.com/en-us/library/jj204669.aspx

https://support.office.com/en-us/article/Configure-Skype-for-Business-Server-2015-Hybrid-b06ee805-4349-4519-82fb-b06ed57c0bd0

https://channel9.msdn.com/Events/Ignite/2015/BRK4129
